1.Product introduction and features

The 3C industry market size exceeds one trillion US dollars. Focusing on industry pain points such as difficulty in fault diagnosis, low efficiency, slow debugging and high threshold for practitioners in the development, quality inspection, maintenance and after-sales of complete 3C products, this research has made breakthroughs in high-precision magnetic sensor linear array scanning information synchronization and electromagnetic noise suppression technology. A high-efficiency, high-precision, highly portable, low-cost, and strong-penetrating non-destructive scanning imager for magnetic characteristics and current density was developed. It can realize rapid magnetic feature scanning imaging and obtain the current density distribution intensity and direction image inside the device. More mature image feature recognition and deep learning technologies can be used to anchor fault types and quickly diagnose faults.

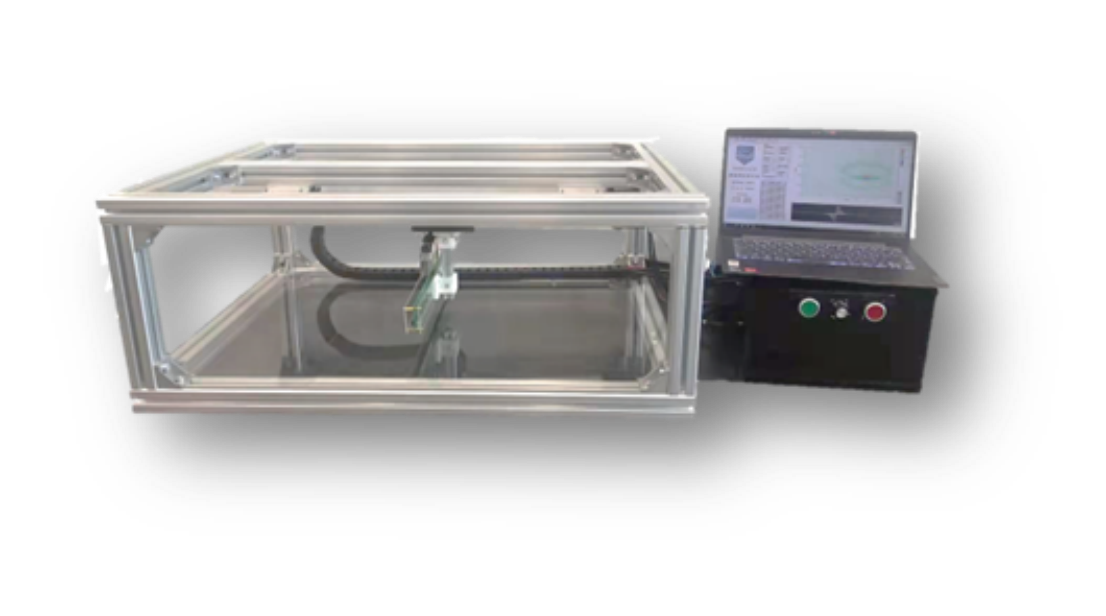

Magnetic signature imaging scanner engineering prototype

2.Technological innovation

1.Display the invisible, intangible, easily disturbed magnetic field and its derived characteristics in the form of images.

2.Display the internal current density of invisible and unpredictable electronic products (including power supplies) in the form of images.

3.Based on the deep learning method, the fault type and location are anchored to achieve rapid fault diagnosis.

3.Market prospects and application fields

1.Magnetic material manufacturers: (steel, magnet, ferrite manufacturers) provide quality inspection basis based on magnetic field images. At present, it has reached a cooperation intention with Sinosteel Tianyuan and signed a purchase intention contract with Suzhou Yifeng.

2.Precision electronic equipment manufacturers: Provide magnetic characteristic images of products under typical working conditions such as standby, operation, and overload, obtain internal current density distribution images of products, and assist in design, optimization, maintenance, and quality inspection.

3.High-power lithium battery equipment production and use end: Provide images of the magnetic characteristics of the lithium battery surface, obtain internal current density intensity and direction information, and monitor the working status and health of the lithium battery.

4.Scientific research institutions: develop scientific research and testing equipment such as superconductor skin effect and Meissner effect.

4.Application effect

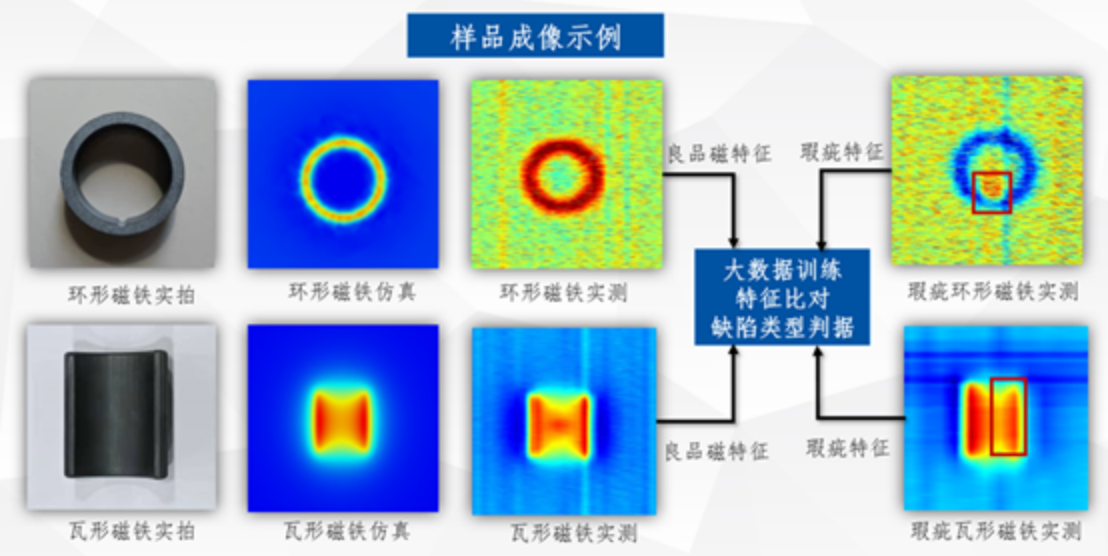

Ferrite Magnet Magnetic Characteristic Imaging

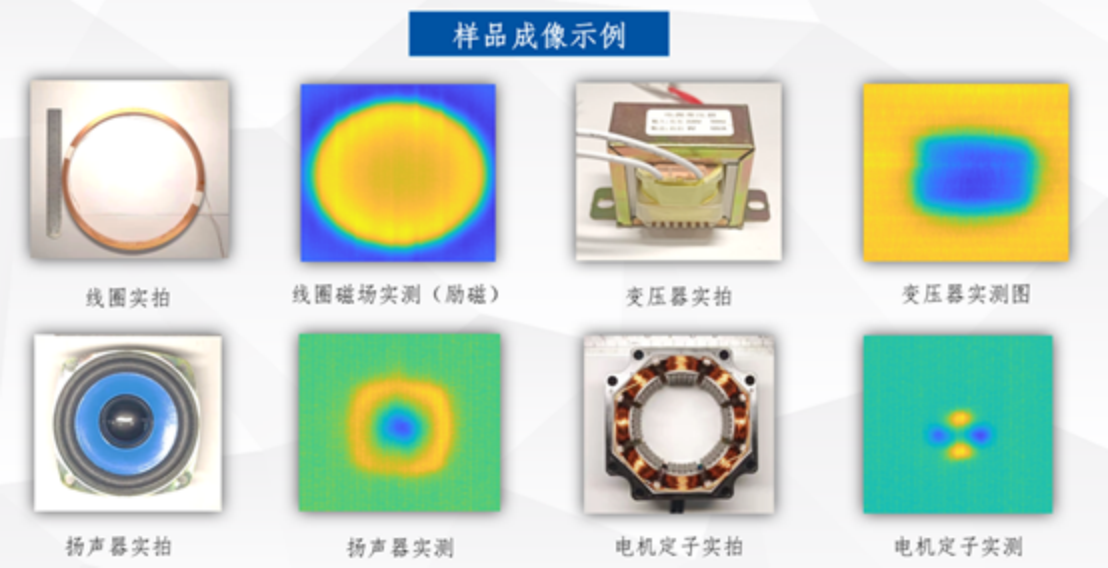

Magnetic signature imaging of electromechanical products

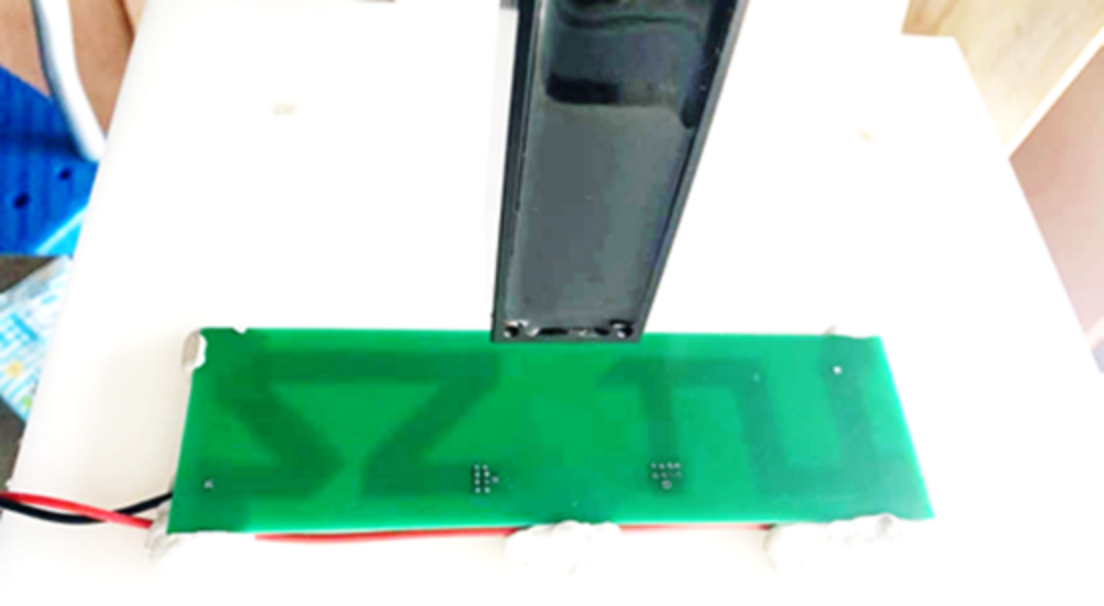

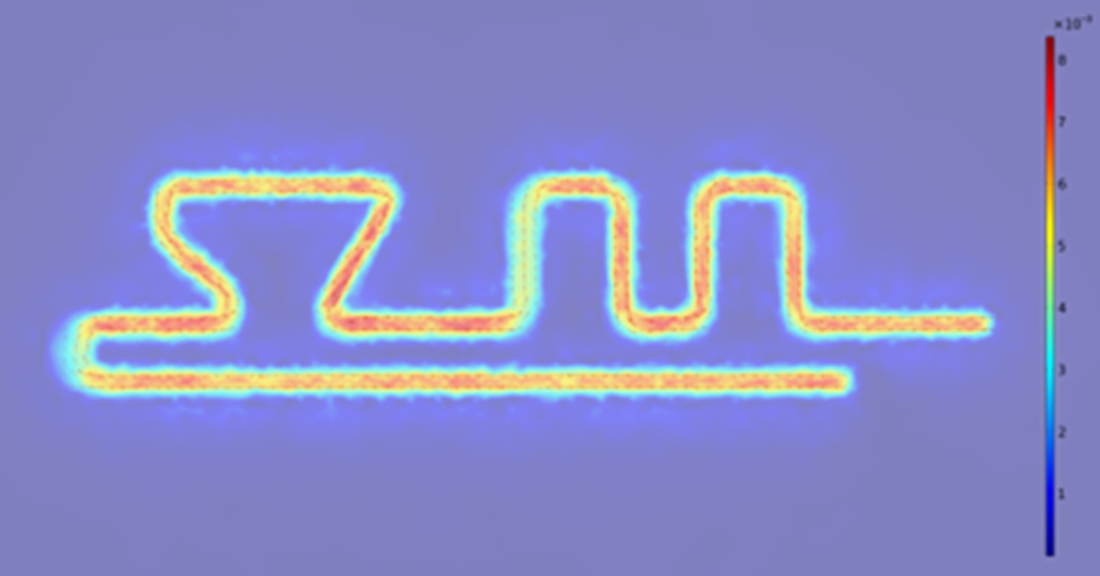

PCB board magnetic characteristics |B| Imaging

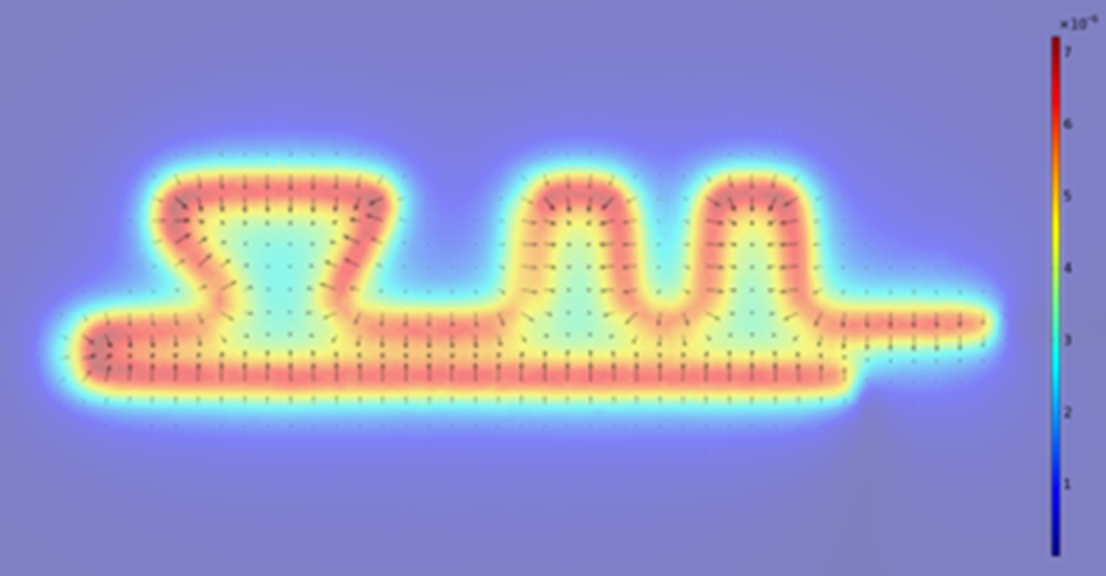

PCB board current density imaging
