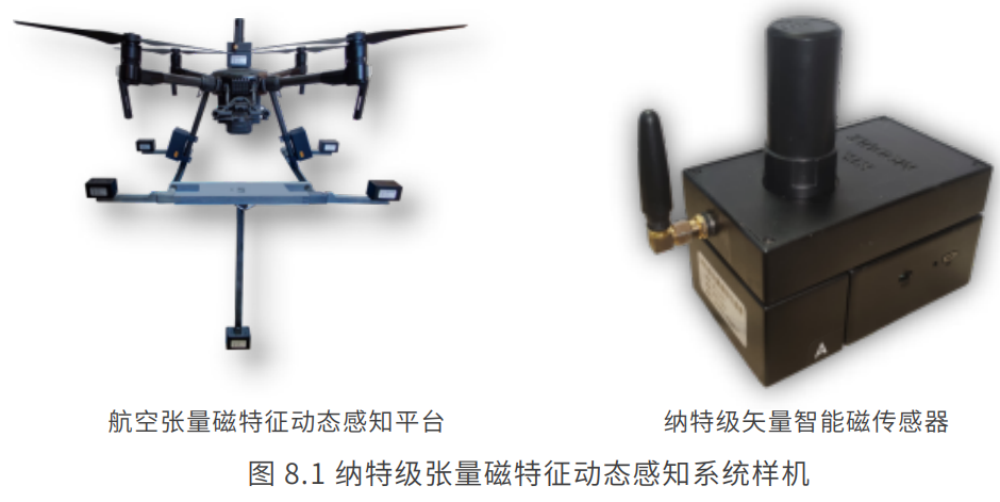

A variable baseline full tensor magnetic field gradient measurement device has been developed to meet the requirements for sensing magnetic characteristics of UAV mounting platforms and ground targets. The system prototype and product application effects are shown in Figure 8.1 and Figure 8.2.

The advanced nature of this product

①Compared with the existing manual magnetic survey, the magnetic detection efficiency is increased by more than 50 times

②Compared with the existing fixed-wing aeromagnetic survey, the test cost is reduced by more than 10 times

③Compared with existing magnetic detection technology, the types of magnetic features available are increased by 3 times

Key technologies

①Deep impact current magnetization-synchronous sampling technology

②Three-axis vector magnetic sensor orthogonality correction technology

③Geographical information-magnetic feature fusion technology

Technical indicators

①Magnetic field resolution: 3 nT

②Magnetic field range: ±20μT

③Positioning error: 2 cm

④Communication protocol: LTE, Wi-Fi

⑤Dynamic refresh rate: 50 milliseconds

⑥Magnetic field gradient resolution: 5 nT/m

⑦Magnetic field noise spectral density peak: 9 nT/sqrt(Hz)@1 Hz

Technical features and advantages

①High precision: nanometer-level magnetic measurement accuracy, centimeter-level positioning accuracy

②High efficiency: dynamic data return, real-time magnetic feature analysis

③Multiple features: scalar-vector-tensor comprehensive magnetic feature collection

④Low cost: low manufacturing cost, low maintenance cost

⑤Standardization: can be scaled up and industrialized

⑥Miniaturization: With the function of being portable or equipped with a small drone

Scope of application and market analysis

①Military industry leadership: magnetic anomaly detection for underwater/surface ships, underground unexploded ordnance, vehicles and other magnetic target positioning equipment.

②Aerospace pilot: spacecraft magnetic signature analysis equipment, technology and services, and assessment of orbit deviation risks caused by the geomagnetic field.

③Industry promotion: Provide resource exploration units with UAV aerial exploration technical services and equipment for iron, cobalt, nickel and other magnetic minerals.

④Military-civilian integration: Provide municipal construction units with submarine tunnels, land reclamation surface subsidence monitoring, early exploration and post-maintenance monitoring services for municipal operations.
